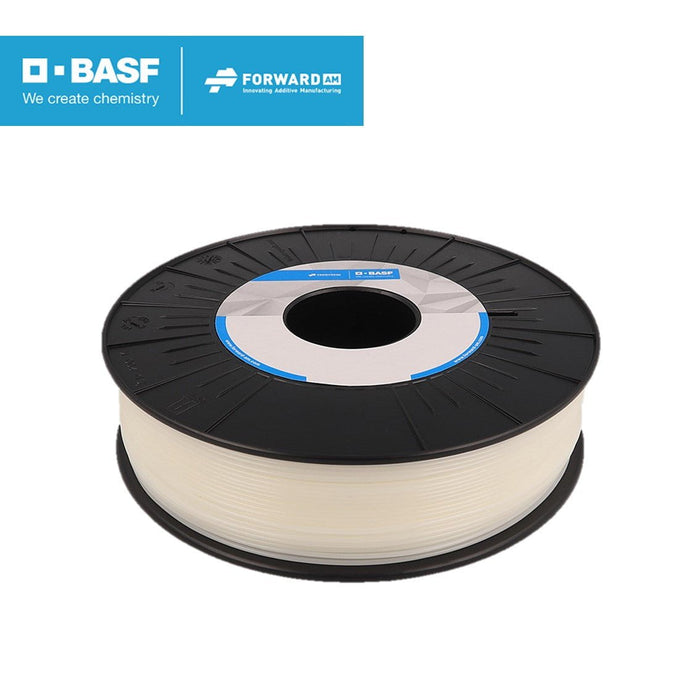

Ultrafuse® TPS 90A Natural White Flexible 3D Print Filament 750g

Ultrafuse® TPS 90A is an elastomer based on the raw material SEBS. The combination of durable and flexible building blocks leads to a very versatile material. Compared to other flexible 3D printing materials it shows more rubber-like soft-touch haptics and better non-slip properties. Furthermore, the material shows a reduced moisture uptake, which allows for printing without pre-drying. Parts printed with Ultrafuse® TPS 90A show almost no visible layers or warpage, which makes it an excellent material choice for end-use parts.

Benefits

• Soft touch
• Non-slip properties
• Reduced moisture uptake
• Excellent layer adhesion
• Very good low-temperature flexibility

Material Properties

• Shore A Hardness: 89
• Abrasion Resistance: 111 mm3
• Compression set at 23°C, 72h: 75%
• Stress at Break: 7 MPa (XY), 2 MPa (ZX)
• Elongation at Break: 280 % (XY), 9 % (ZX)
• Tear Strength: 10 kN/m (XY), 5 kN/m (XZ), 4 kN/m (ZX)

Applications

• Functional flexible parts

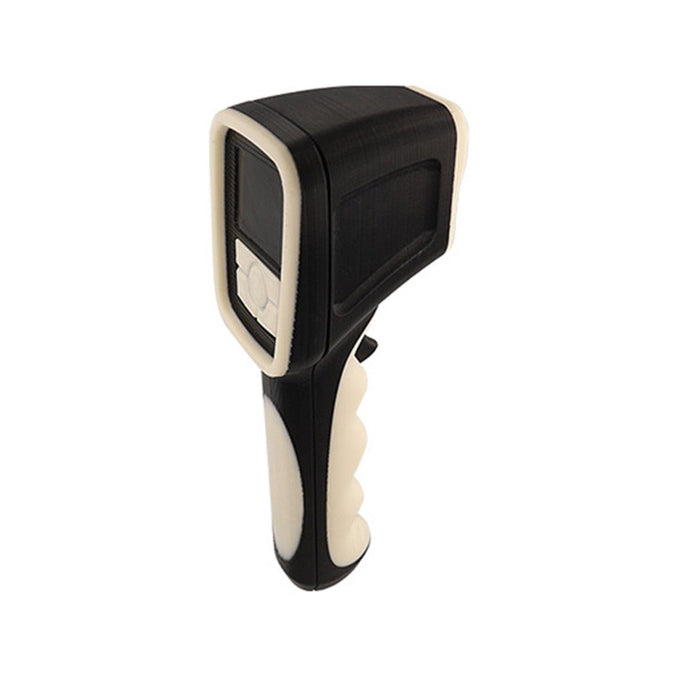

• Handles of appliances
• Seals and gaskets

Print Settings

• Nozzle Temperature: 260-280 °C
• Bed Temperature: 70°C - 90°C
• Bed Material: PEI, PI or glue
• Nozzle Diameter: ≥ 0.4 mm
• Print Speed: 10-30 mm / s
