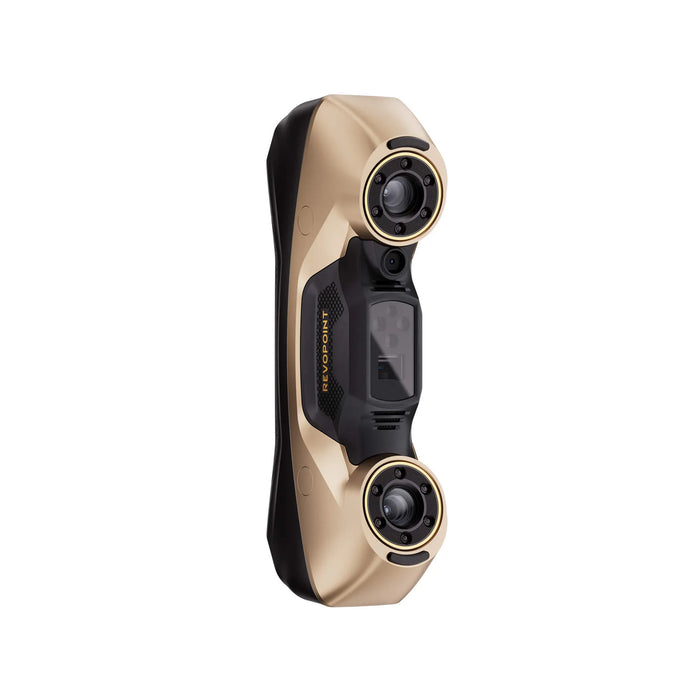

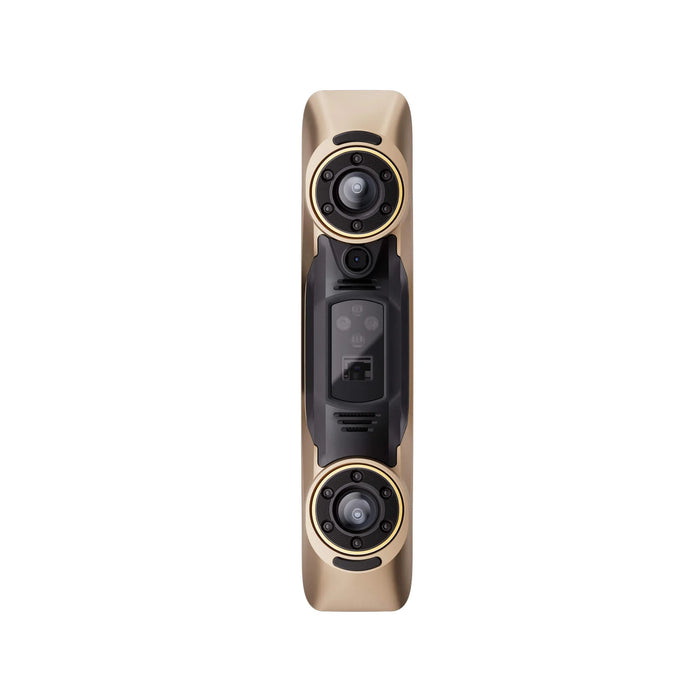

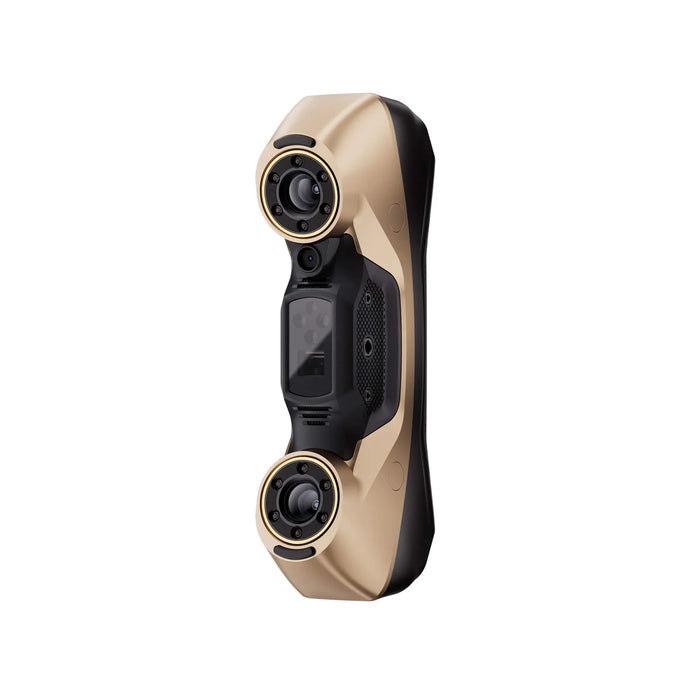

Revopoint Metro Y Ultra 3D Scanner
Revopoint Metro Y Ultra 3D Scanner
Metrology-Grade Accuracy. Ultra-Fast Scanning.
The Revopoint Metro Y Ultra is a professional-grade 3D scanner designed for reverse engineering, quality control, product development, and advanced manufacturing. Combining blue laser technology with full-field structured-light scanning, Metro Y Ultra delivers exceptional accuracy, speed, and versatility for scanning small- to medium-sized objects.
Key Features
- Metrology-grade accuracy up to 0.015 mm
- Volumetric accuracy: 0.015 mm + 0.04 mm × L (m)

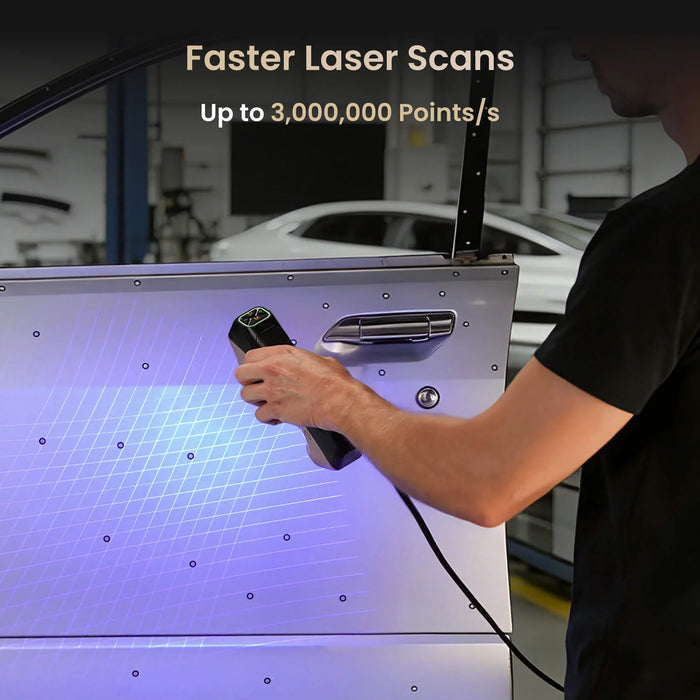

- Ultra-fast scanning up to 3,000,000 points per second
- Five scanning modes for different applications
- Scan dark, shiny, and complex surfaces with minimal preparation
- Wireless operation via Wi-Fi 6

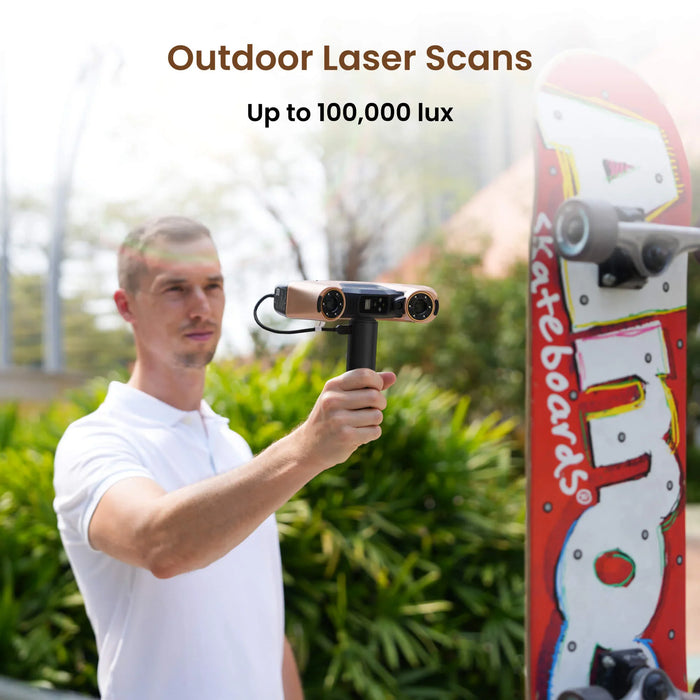

- Outdoor scanning capability up to 100,000 lux
- Supports scanning objects from 10 mm to 2 m in size
- Compatible with Windows and macOS systems

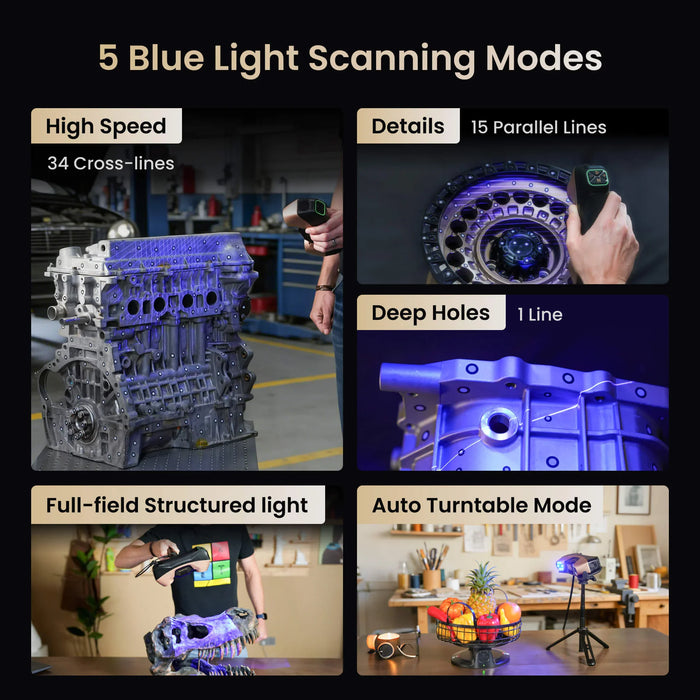

Five Powerful Scanning Modes
34 Cross-Line Blue Laser Mode
Capture large surfaces quickly while maintaining excellent detail and accuracy.
15 Parallel-Line Laser Mode
Ideal for intricate features, sharp edges, and precision engineering applications.
Single-Line Deep Hole Mode
Access recessed areas, grooves, and hard-to-reach features.
62-Line Structured Light Mode
Achieve ultra-fast, marker-free scanning of detailed objects.
Automatic Turntable Mode
One-click automated scanning for repeatable and efficient workflows.
Built for Professional Workflows
Metro Y Ultra is ideal for:
- Reverse Engineering
- Quality Inspection & Dimensional Analysis
- Product Design & Manufacturing
- Additive Manufacturing
- Tooling & Mould Inspection
- Research & Education
Its advanced tracking system supports feature, marker, and global marker tracking, ensuring stable and reliable scans even on challenging objects.
Technical Specifications
| Specification | Metro Y Ultra |
|---|---|
| Single-frame Accuracy | Up to 0.015 mm |

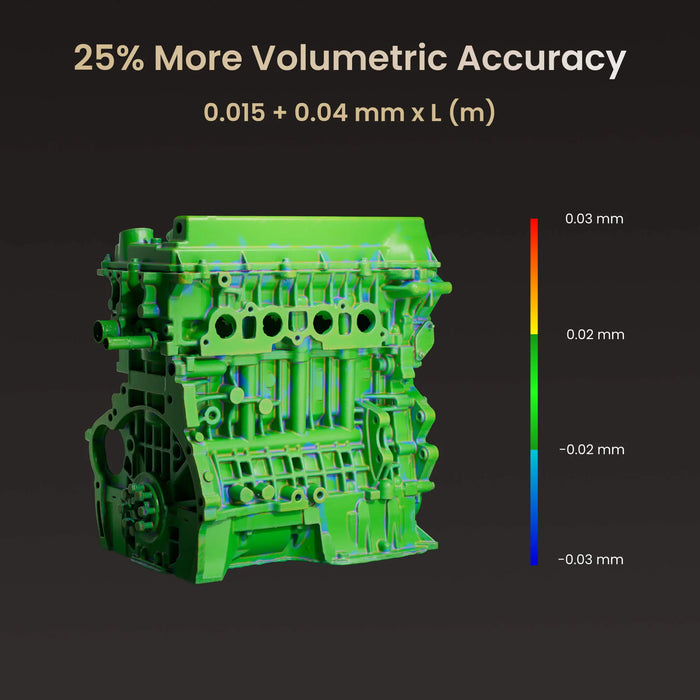

| Volumetric Accuracy | 0.015 mm + 0.04 mm × L (m) |
| Precision | Up to 0.01 mm |
| Scan Speed | Up to 90 FPS |
| Point Capture Rate | Up to 3,000,000 pts/s |
| Scan Volume | 10 × 10 × 10 mm to 2 × 2 × 2 m |
| Working Distance | 200 – 400 mm |
| RGB Camera | 2 MP |
| Connectivity | USB-C, Wi-Fi 6 |
| Output Formats | STL, OBJ, PLY, 3MF, FBX, GLTF |
| Weight | 450 g |

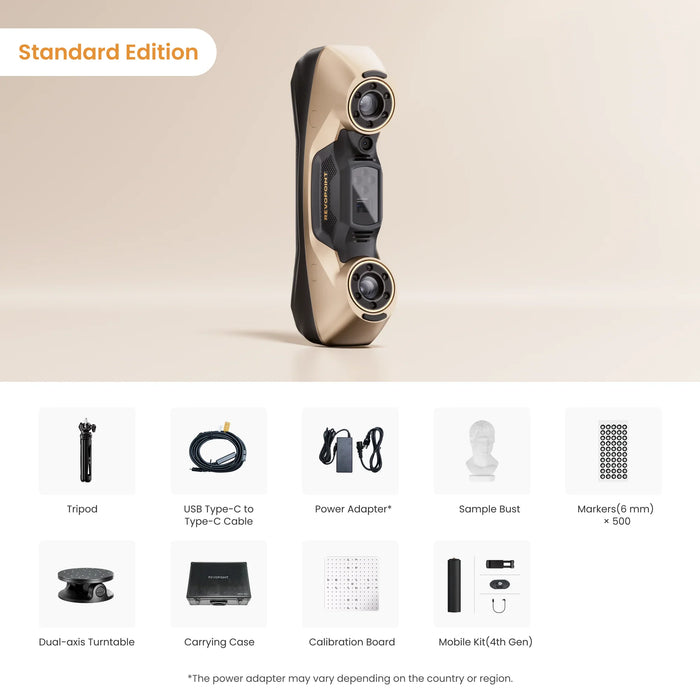

What's Included
- Metro Y Ultra Scanner
- Dual-Axis Turntable
- Calibration Board
- Tripod
- Carrying Case
- Marker Set
- USB-C Cable
- Power Adapter
- Revo Scan Software
Why Choose Metro Y Ultra?
Whether you need high-precision inspection, detailed reverse engineering, or fast production-ready scanning, the Revopoint Metro Y Ultra delivers industrial-level performance in a compact and portable package. With multiple scanning technologies, exceptional accuracy, and ultra-fast data capture, it is one of the most capable metrology-grade scanners in its class.
