Revopoint MetroX Blue Laser Line and Full-field Structured Light 3D Scanner

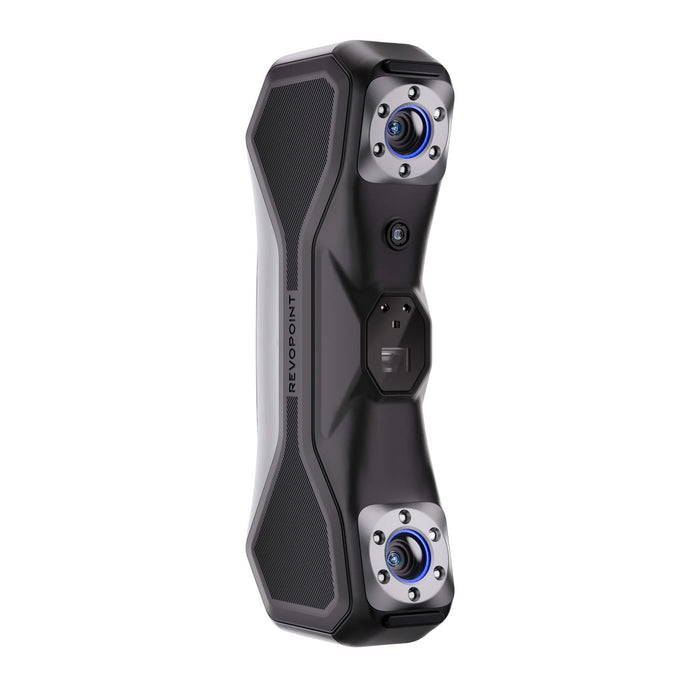

Revopoint MetroX 3D Scanner
Metrology-Grade Precision Meets Versatile Scanning
Overview
The Revopoint MetroX is a professional-grade 3D scanner designed to deliver exceptional precision and flexibility. Combining blue laser line and structured light technologies, it offers four powerful scanning modes suited for reverse engineering, product design, medical modeling, and more. Ideal for both handheld and desktop use, the MetroX ensures accurate, fast, and versatile 3D scanning across a wide range of applications.
Key Features
-
Metrology-Grade Accuracy
Achieve up to 0.01 mm single-frame precision and 0.03 mm scan accuracy, with volumetric accuracy of 0.03 mm + 0.1 mm × L (object length in meters). -
High-Speed Scanning
Capture up to 7 million points per second in structured light mode and 800,000 points per second in laser mode. -
Four Scanning Modes
-
Cross Lines Mode: 14 crossed blue lasers for scanning reflective or dark surfaces
-
Parallel Lines Mode: 7 laser lines for capturing fine details and edges
-
Structured Light Mode: 62-line blue light for fast, markerless full-field scans
-
Turntable Mode: Auto-rotating scanning for 360° capture with color
-
-
Flexible Tracking Options
Supports feature, marker, and global marker tracking for stable scanning across different object types and surfaces. -
Wide Scan Range
Ideal for objects ranging from 10 mm to 1 meter in size with a working distance of 200–400 mm. -
Smart Software Integration
Comes with Revo Scan 5 for real-time scanning, editing, and export in formats like PLY, OBJ, STL, ASC, 3MF, GLTF, and FBX.
Technical Specifications
-
Dimensions: 209 × 88 × 44 mm
-
Weight: 508 g
-
Accuracy: Up to 0.03 mm
-
Working Distance: 200–400 mm
-
Frame Rate: 10–20 fps
-
Scan Range: 10 mm – 1,000 mm
-
Output Formats: PLY, OBJ, STL, ASC, 3MF, GLTF, FBX
-
Power Supply: DC 12V, 3A
-
Connection: USB Type-C
-
OS Support: Windows 10/11 (64-bit), macOS 11+
-
Recommended Specs:
-
Windows: Intel i7 10700 / Ryzen 7 5800 or above, 32GB RAM
-
macOS: M1 Pro/Max/Ultra
-
What’s Included
Standard Edition
-
MetroX Scanner
-
Dual-axis Turntable
-
Tripod & Cradle
-
Calibration Board
-
Power Adapter
-
USB Cables & Adapter
-
500 Markers
-
Sample Bust
-
Carry Case
-
Quick Start Guide
-
Warranty Card
Advanced Edition
Includes everything in the Standard Edition plus a Marker Block Kit for easier scanning of marker-less surfaces.
