Revopoint Trackit SR 3D Scanner
Revopoint Trackit SR Wireless Tracking 3D Scanner
Wireless. Marker-Free. High-Precision 3D Scanning.
The Revopoint Trackit SR is a professional optical tracking 3D scanner designed for reverse engineering, quality inspection, product development and industrial applications.

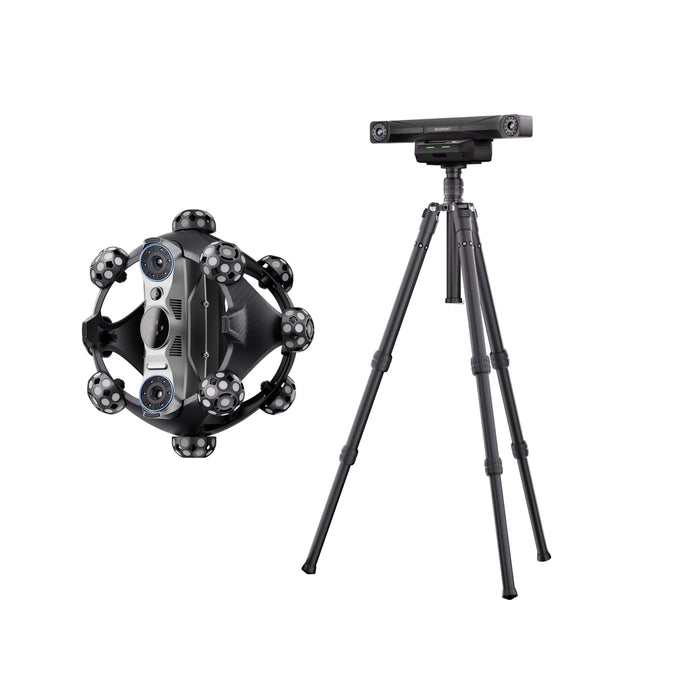

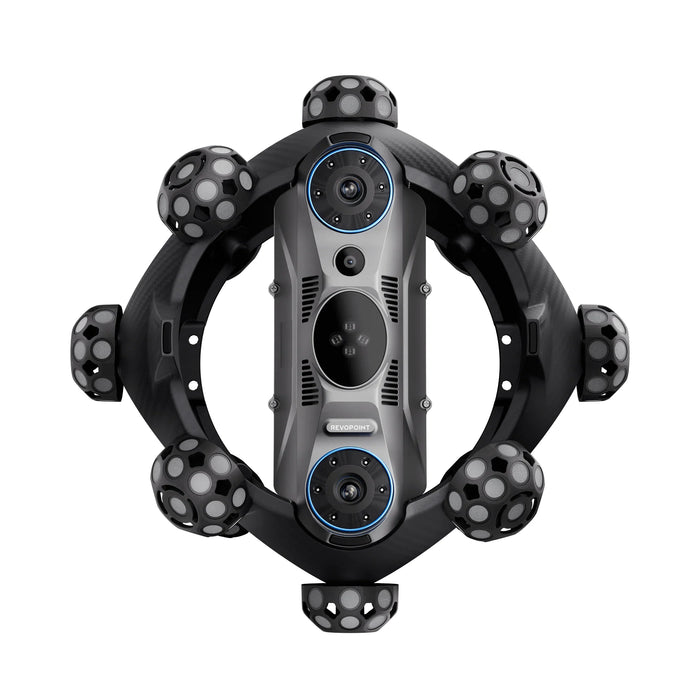

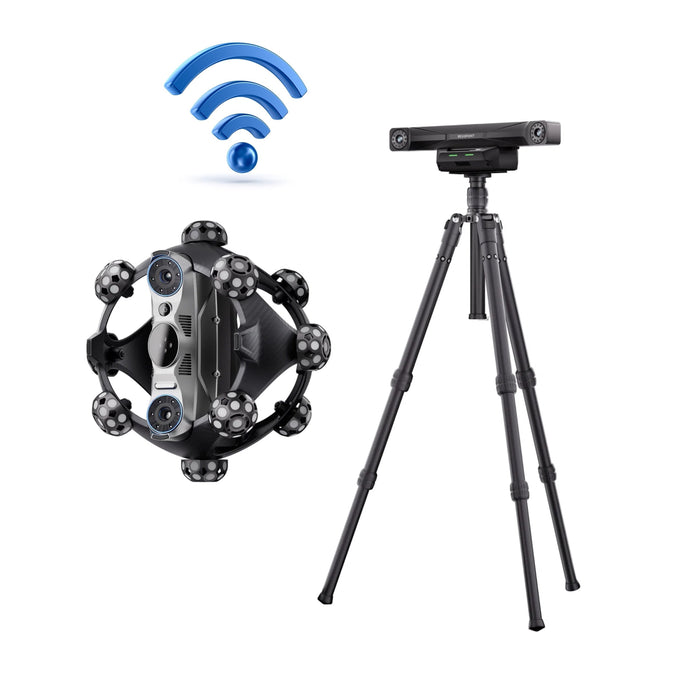

Combining a wireless optical Tracker with a lightweight blue-laser Scanner, Trackit SR tracks the scanner's position in real time, enabling high-accuracy, marker-free scanning without attaching tracking markers to the workpiece.
With volumetric accuracy of 0.025 mm + 0.04 mm × L (m), scanning speeds up to 2,000,000 points per second, Wi-Fi 6 connectivity and a recommended object size from 10 mm to 4 m, Trackit SR provides a highly portable solution for professional 3D scanning.
Key Features
- Marker-Free Optical Tracking – Scan accurately without placing tracking markers over the object's surface.
- Wireless Scanning – Wi-Fi 6 and swappable batteries provide greater freedom around large or complex parts.
- High Accuracy – Volumetric accuracy of 0.025 mm + 0.04 mm × L (m).
- Up to 2 Million Points/s – Rapidly capture dense 3D data.
- 30 Cross Laser Lines – Fast, detailed scanning of complex geometry.
- 17 Parallel Laser Lines – Efficient scanning of larger, low-feature surfaces.
- Single Laser Line – Designed for deep holes, grooves, crevices and other difficult areas.
- 10 mm to 4 m Object Size – Suitable for small components through to large assemblies.

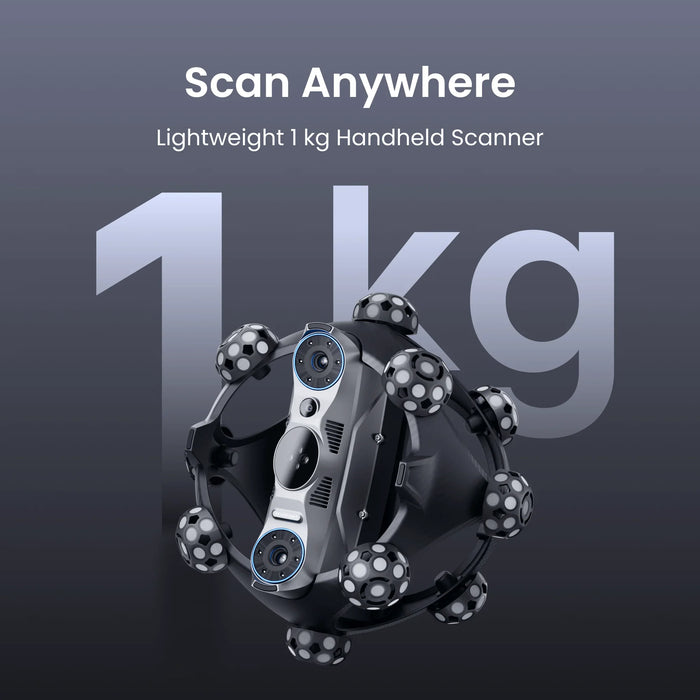

- Lightweight & Portable – Scanner and Tracker weigh just 2.5 kg combined.
- Outdoor Scanning – Suitable for both workshop and on-site applications.

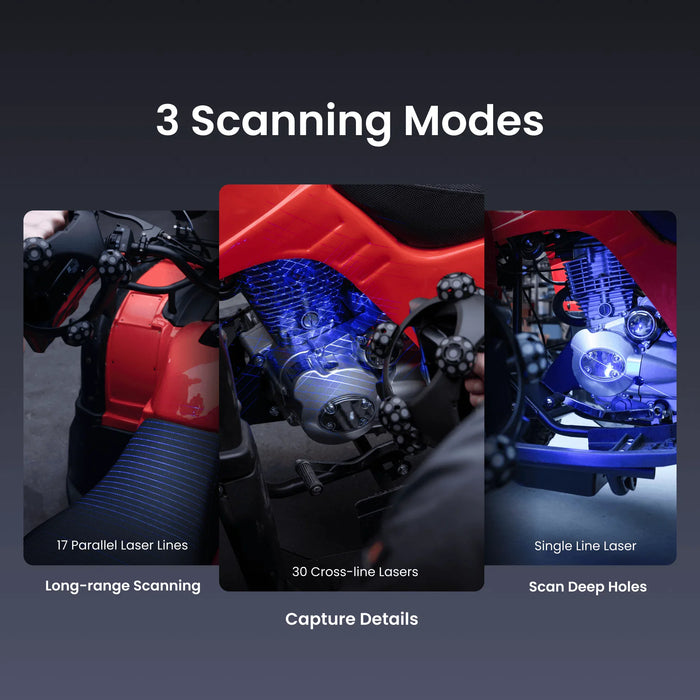

Three Blue Laser Scanning Modes
30 Cross-Line Lasers – Detail Capture
Capture detailed geometry at speeds up to 2 million points per second.
17 Parallel Laser Lines – Fast Scanning
Quickly capture larger and relatively low-feature workpieces.
Single Laser Line – Deep Hole Scanning
Capture recessed features, deep holes, crevices and grilles that can be difficult to scan using conventional laser patterns.

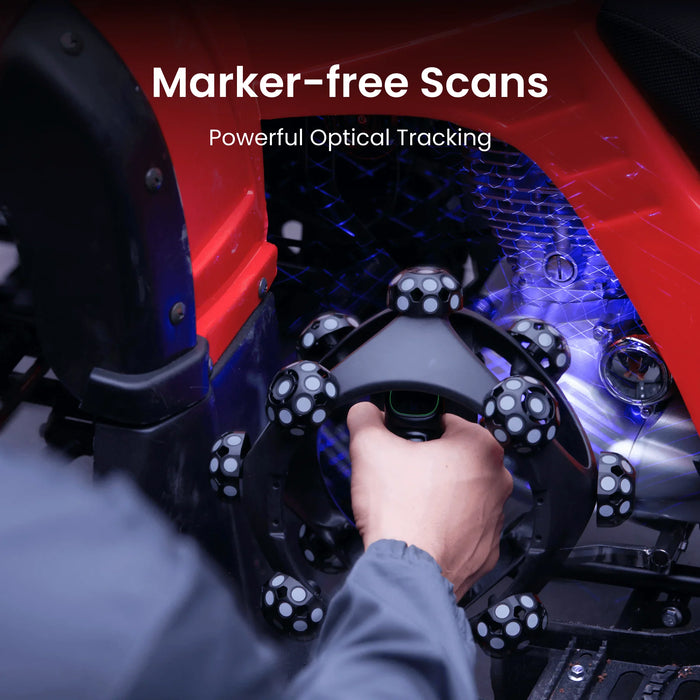

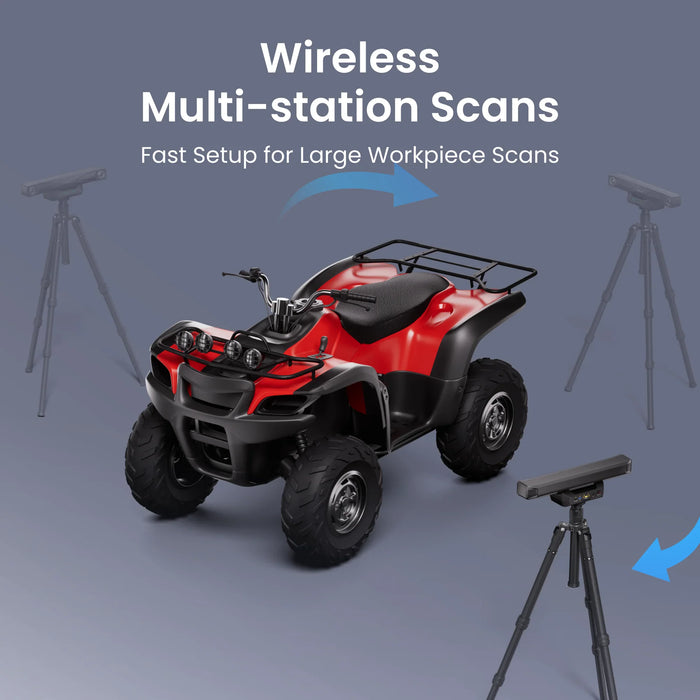

Wireless, Marker-Free Scanning

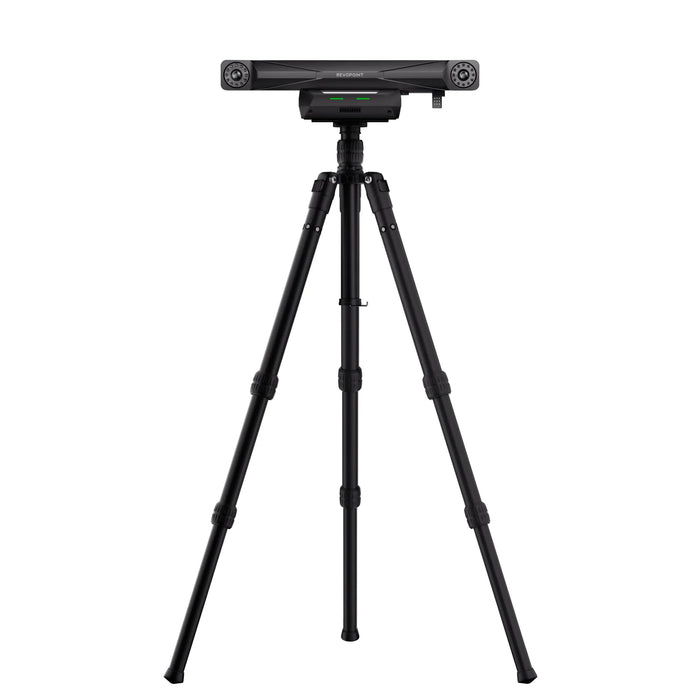

Trackit SR's optical Tracker continuously monitors the Scanner's position, allowing accurate 3D scanning without placing markers directly on the workpiece.
Wi-Fi 6 wireless streaming and swappable batteries further simplify the workflow, allowing operators to move freely around the object. Battery life is up to 2.5 hours.

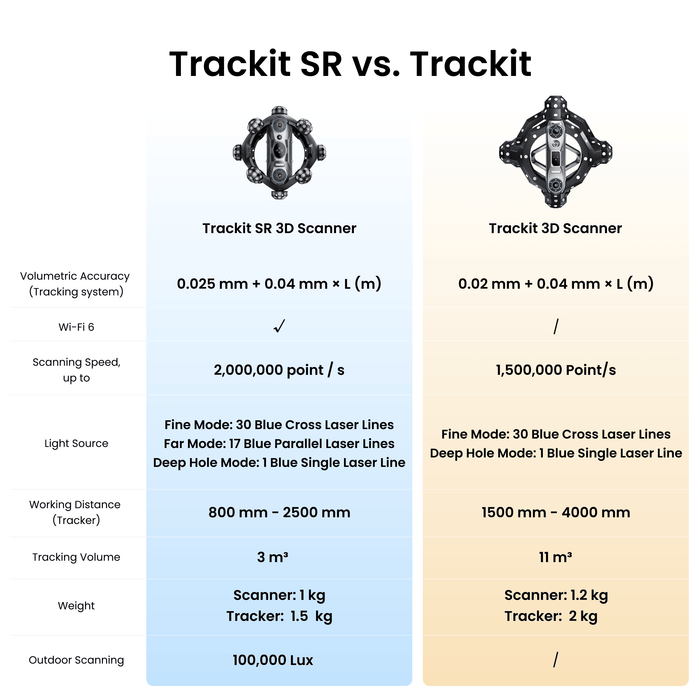

Trackit SR vs Trackit
| Feature | Trackit SR | Trackit |
|---|---|---|
| Volumetric Accuracy | 0.025 mm + 0.04 mm × L | 0.02 mm + 0.04 mm × L |
| Maximum Scanning Speed | 2,000,000 points/s | 1,500,000 points/s |
| Detail Scanning | 30 Cross Lines | 30 Cross Lines |
| Fast Scanning | 17 Parallel Lines | — |
| Deep Hole Scanning | Single Line | Single Line |
| Wireless / Wi-Fi 6 | Yes | No |
| Tracker Working Distance | 0.8 – 2.5 m | 1.5 – 4 m |
| Tracking Volume | 3 m³ | 11 m³ |
| Scanner Weight | 1.0 kg | 1.2 kg |
| Tracker Weight | 1.5 kg | 2.0 kg |
Which one should you choose?
Choose Trackit SR if portability, wireless operation and faster scanning are your priorities. Its 17 parallel laser lines also make it particularly efficient for scanning larger, low-feature surfaces.
Choose Trackit when you need a significantly larger tracking volume or slightly higher volumetric accuracy for large-scale industrial scanning.
