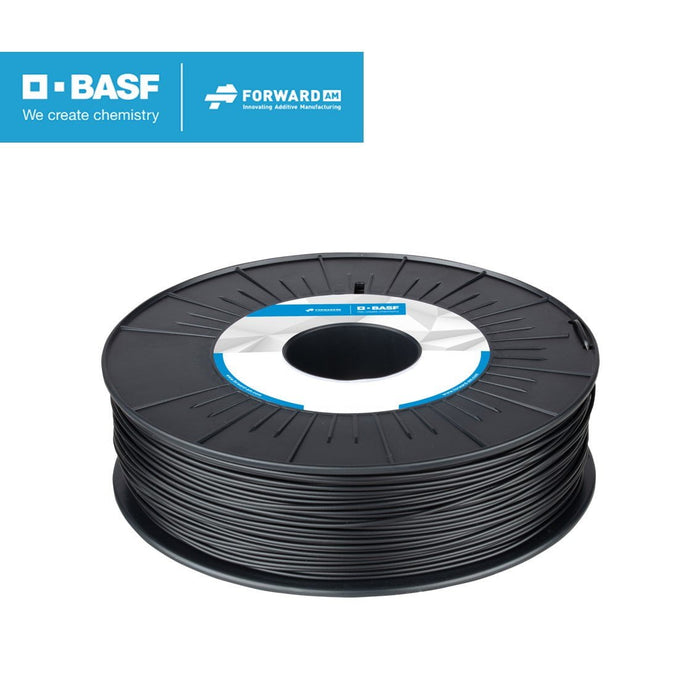

Ultrafuse® ASA 3D Print Filament 750g 1.75mm

Ultrafuse ASA is a high-performance thermoplastic with similar mechanical properties as ABS. ASA offers additional benefits such as high outdoor weather resistance. The UV resistance, toughness, and rigidity make it an ideal material to 3D-print outdoor fixtures and appliances without losing its properties or colour. When also taking into account the high heat resistance and high chemical resistance, this filament is a good choice for many types of applications.

Benefits

• UV stabilized
• Weather resistance
• Long life span
• Very tough
• Resistant to wear and tear
• Chemical resistance

Applications

• Outdoor use
• Functional prototypes
• Chemical environment
• Reasonable heat resistance

Material Properties

• Tensile Strength (MPa): 12.0 (ZX), 34.6 (XY)
• Flexural Modulus (MPa): 1041 (ZX), 1638 (XZ), 1733 (XY)
• Elongation at Break: 1.0 % (ZX), 4.5 % (XY)
• Impact Strength Izod notched (kJ/m2): 1.9 (ZX), 11.4 (XZ), 8.7 (XY)
• Impact Strength Izod unnotched (kJ/m2): 6.8 (ZX), 39.3 (XZ), 36.8 (XY)
• HDT @ 0.45 MPa: 101 ^oC

Print Settings

• Nozzle Temperature: 260-280 °C
• Build Chamber Temperature: Closed chamber, passively heated
• Bed Temperature: 100 - 120 °C
• Bed Material: Spray, PC adhesive
• Nozzle Diameter: ≥ 0.4 mm
• Print Speed: 30 -60 mm / s
